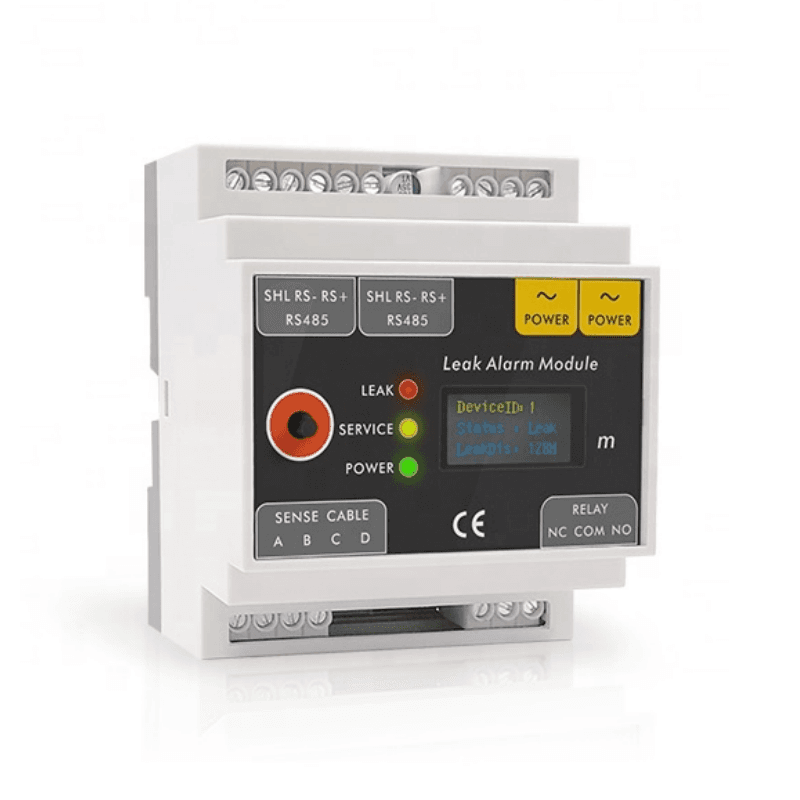

Smart Precise Positioning Location Water Pipe Water Oil Acid Alkali Leak Sensor
SKU: WQ-00593
Available
Smart Precise Positioning Location Water Pipe Water Oil Acid Alkali Leak Sensor (Water quality). Key specifications: Product Name: Water oil Acid Alkali leak detect sensor with precise positioning; Detection cable: Compatible with all kinds of position detection cable; Detect cable length: Maximum 1500 meters; Sensor housing: Black fireproof ANS material, DIN35mm rail mounting; Size and weight: L70*W86*H58mm, Weight 200g.
- Product Name
- Water oil Acid Alkali leak detect sensor with precise positioning
- Detection cable
- Compatible with all kinds of position detection cable
- Detect cable length
- Maximum 1500 meters
- Sensor housing
- Black fireproof ANS material, DIN35mm rail mounting
- Size and weight
- L70*W86*H58mm, Weight 200g
- Detection sensitivity
- 0-50K stepless adjustment, response time <1 second (at highest sensitivity)
- Accuracy
- 2% of the detect cable length
- Supply voltage
- 12VDC, 24VAC or 220VAC, working current <1A
- Relay output
- 1SPDT Normally open normally closed output, rated power 220VAC/2A
- RS485 output
- RS485+, RS485-, two-wire communication interface, device address 1-255
