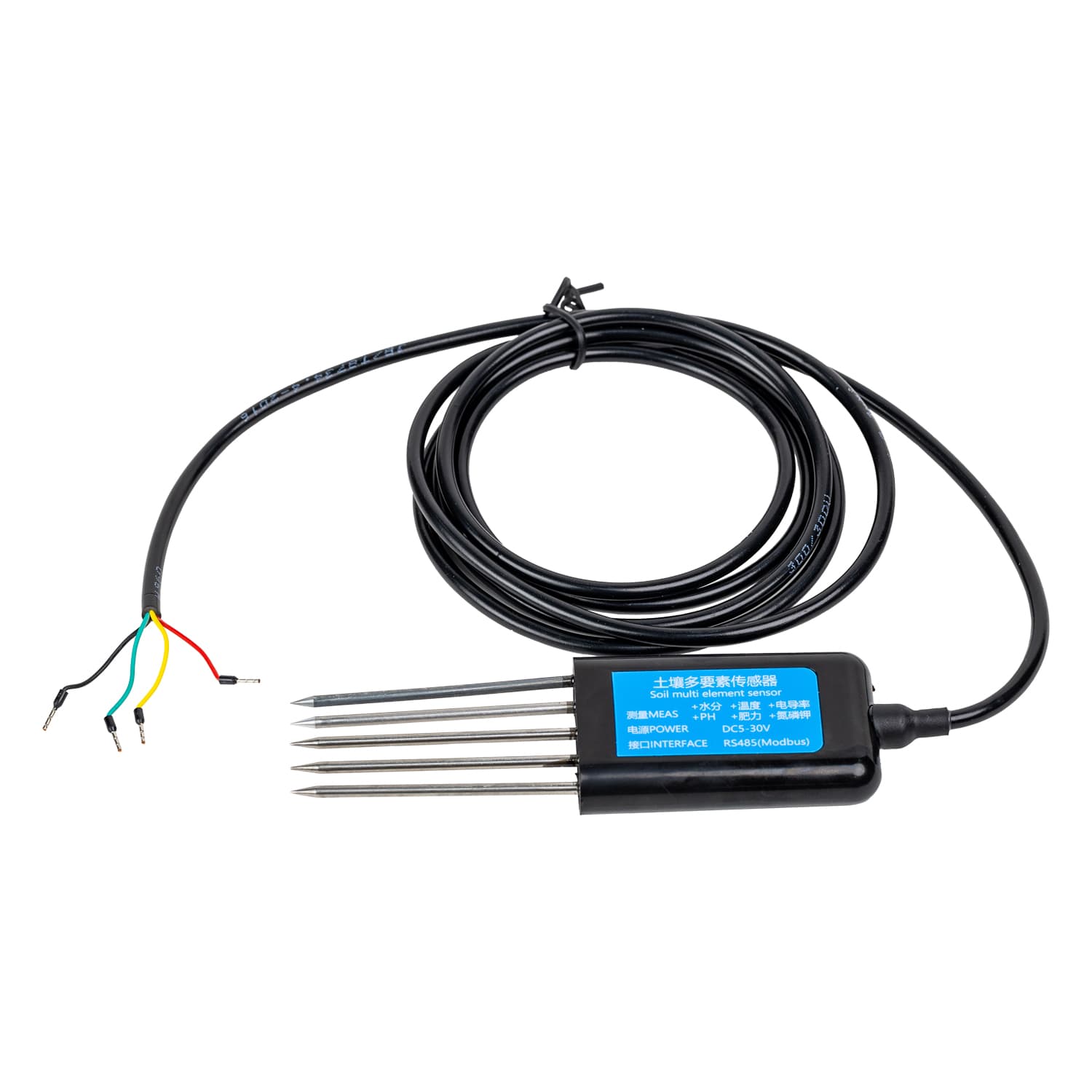

RS485 soil 5pins sensor
SKU: AGR-00037
Available
RS485 soil 5pins sensor (Soil Sensor). Key specifications: Measurement: EC, PH, TEMP, NPK, Moisture, Fertility; Measurement range: EC: 0-20000us/cm; Moisure: 0-100%; TEMP: -40~80℃; PH: 3-10.
- Measurement
- EC, PH, TEMP, NPK, Moisture, Fertility
- Measurement range
- EC: 0-20000us/cm
- Moisure
- 0-100%
- TEMP
- -40~80℃
- PH
- 3-10
- NPK
- 1-1999 mg/kg(mg/L)
- Resolution
- EC: 1us/cm
- Moisure
- 0.1%
- TEMP
- 0.1℃
- PH
- 0.1
- NPK
- 1 mg/kg(mg/L)
- Interface
- It can be connected to a single-chip microcomputer or an RS485 to USB data cable
- Class of protection
- IP68
- Output signal
- RS485
- Max power consumption
- 0.5w
- Cable length
- 1.5m
- Class of protection
- IP68
