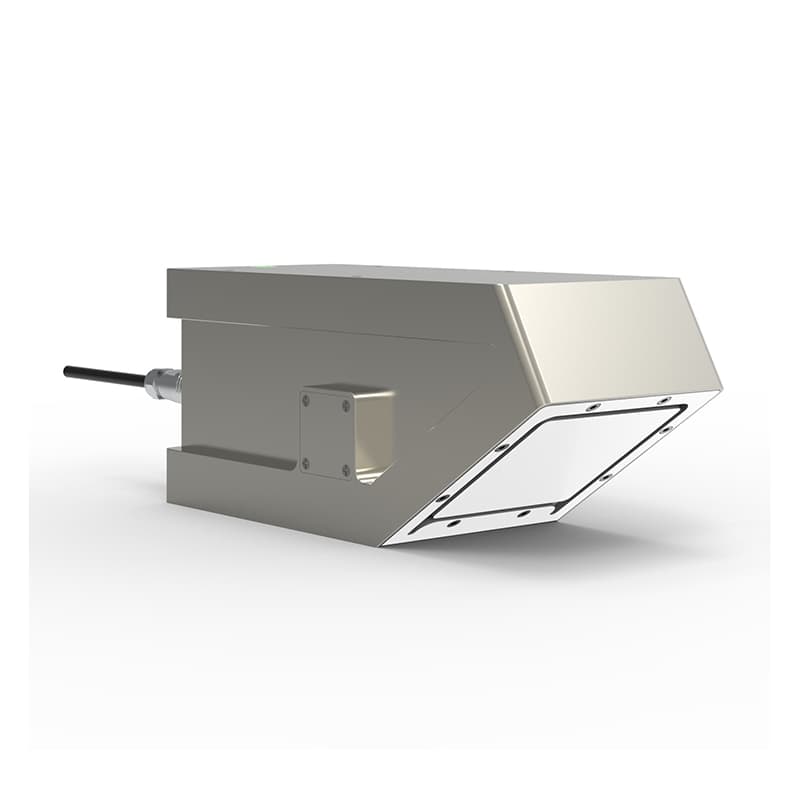

Radar Narrow Beam 3 In 1 Water Level Water Surface Velocity Water Flow Sensor
SKU: IND-00499
Available
Radar Narrow Beam 3 In 1 Water Level Water Surface Velocity Water Flow Sensor (Hydrology). Key specifications: Product Name: Radar Water Flowrate Water level water flow 3 in 1 meter; Measuring principle: Radar Planar microstrip array antenna CW+PCR; Operating mode: Manual, automatic, telemetry; Operating Voltage: 3.5~4.35VDC; Relative humidity range: 20%~80%.
- Product Name
- Radar Water Flowrate Water level water flow 3 in 1 meter
- Measuring principle
- Radar Planar microstrip array antenna CW+PCR
- Operating mode
- Manual, automatic, telemetry
- Operating Voltage
- 3.5~4.35VDC
- Relative humidity range
- 20%~80%
- Storage temperature range
- -30C~80C
- Working current
- 12VDC input, standby ≤300mA
- Lightning protection level
- 6KV
- Physical dimension
- 160*100*80mm
- Weight
- 1KG
- Protection level
- IP68
- Flowrate Measuring range
- 0.03-20m/s
- Flowrate Measurement accuracy
- ±0.01m/s
- Flowrate Radar frequency
- 24GHz
- Radio wave emission angle
- 12°
- Radio wave emission power
- 100mW
- Water level Measuring range
- 0.2~40m / 0.2~7m
- Water level Measuring accuracy
- ±2mm
- Water level Radar frequency
- 60GHz/80GHz
- Radar power
- 10mW
- Antenna angle
- 8°
- Data transmission type
- RS485/RS232/4-20mA
- Wireless module
- GPRS/4G/WIFI/LORA/LORAWAN
