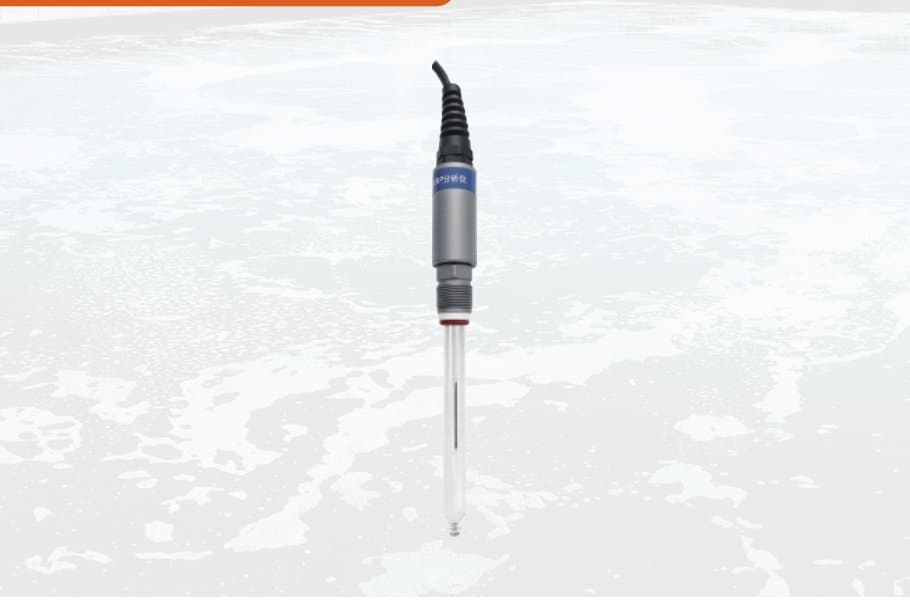

ORP Sensor for Wastewater JSR-105
SKU: WQ-01716
Available
ORP Sensor for Wastewater JSR-105 The PSR-105 series of industrial-grade ORP sensors are specifically designed for applications such as wastewater and surface water. The sensors incorporate proprietary technologies—including a ceramic salt bridge, gel reference electrode, and a large-area platinum sensing membrane—to ensure stable operation even under harsh conditions.
- Measurement Range
- (-2000~2000) mV
- Temperature Range
- (0~60) °C
- Maximum Pressure Rating
- 6 Bar
- Sensing Membrane
- Large-area platinum plate
- Reference Type
- Capillary tube
- External Salt Bridge
- Ceramic
- Reference Solution
- Gel
- Temperature Sensor
- PT1000 (S8 connector without temperature sensor)
- Connection Type
- Cab, VP8, S8
- Electrode Length
- 120 mm
- Mounting Method
- PG13.5 thread
