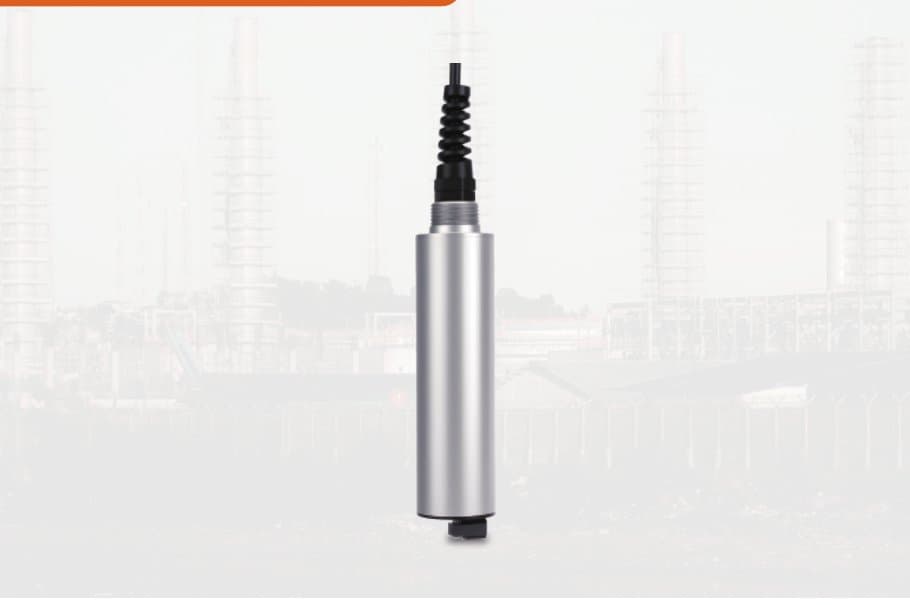

Online Oil in Water Analyzer JOSA-Oil
SKU: WQ-01660
Available
Online Oil in Water Analyzer JOSA-Oil Introduction Advantages JOSA-Oil is an online water quality analyzer developed based on. Adopt high brightness LED as light source, which can work an optical water quality analysis platform. Highly sensitive stably for a long time photoelectric sensors capture weak fluorescence signals and. Unique optical and electronic filtering technology is used to convert them into oil in water. The intelligent sensor design eliminate the influence of ambient light on measurement concept can automatically compensate for the impact of voltage. The cleaning brush automatically cleans, reducing maintefluctuations and device aging changes on the measured value.
- Measurement parameters
- Oil in water (crude oil), temperature
- Measurement method
- Fluorescence method
- Range
- Oil in water: (determined by the actual oil sample)
- Temperature
- (0~60)℃
- Accuracy
- ≤±3%
- Repeatability
- ≤2%
- Resolution
- 0.01mg/L
- Detection limit
- Determined by actual oil sample
- Response time
- ≤10s
- Zero drift/quantity drift (24h)
- ≤±1%F.S.
- Calibration cycle
- 6 months
- Temperature range
- (0~60)℃
- Protection level
- IP68
- Cleaning method
- Mechanical brush automatic cleaning
- Communication
- RS485 (ModbusRTU), maximum baud rate 115200bps
- Power supply/Consumption
- (12~24)VDC/ 0.5W(non-cleaning mode)
- Material
- Titanium alloy, stainless steel, POM
