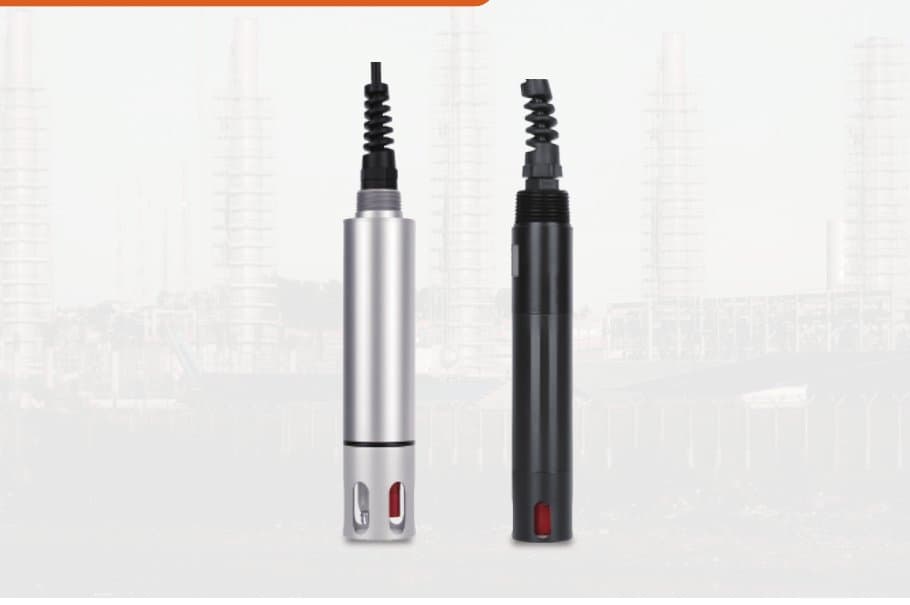

Online Ion Selective Analyzer JISA-FlourI
SKU: WQ-01656
Available
Online Ion Selective Analyzer JISA Series Introduction Advantages JISA is an online water quality analyzer developed based on a. Imported ion bulb sensitive membrane element, can work digital water quality analysis platform. It can accurately monitor stably for a long time most of the water quality ion parameters required by the pH and temperature compensation are standard to meet high market. It uses industrial online ion selective electrodes and precision requirements and provide accurate readings digital and intelligent sensor design concepts. The instrument implements electrode signal detection, pH compensation,.
- Measurement parameters Chloride ion, pH, Temp
- Fluoride ion, pH, Temp Potassium ions, pH, Temp Calcium ions, pH, Temp Bromide ion, pH, Temp
- Measurement method
- Ion Selective Electrode Method
- Range
- Ion concentration: (0.1~1000) mg/L
- pH
- 0~14
- Temperature
- (0~60)℃
- Accuracy
- ≤±3%
- Repeatability
- ≤2%
- Resolution
- Ion concentration: 0.01mg/L, pH: 0.01
- Detection limit
- 0.1mg/L
- Response time
- ≤60s
- Zero drift/quantity drift (24h)
- ≤±3%F.S.
- Calibration cycle
- 3 months
- Temperature range
- (0~60)℃
- Protection level
- IP68
- Communication
- RS485 (ModbusRTU), maximum baud rate 115200bps
- Power supply/Consumption
- (12~24)VDC/ 0.5W
- Material
- Stainless steel, POM
- Weight/Size
- 0.6kg / 205mmxφ45mm
