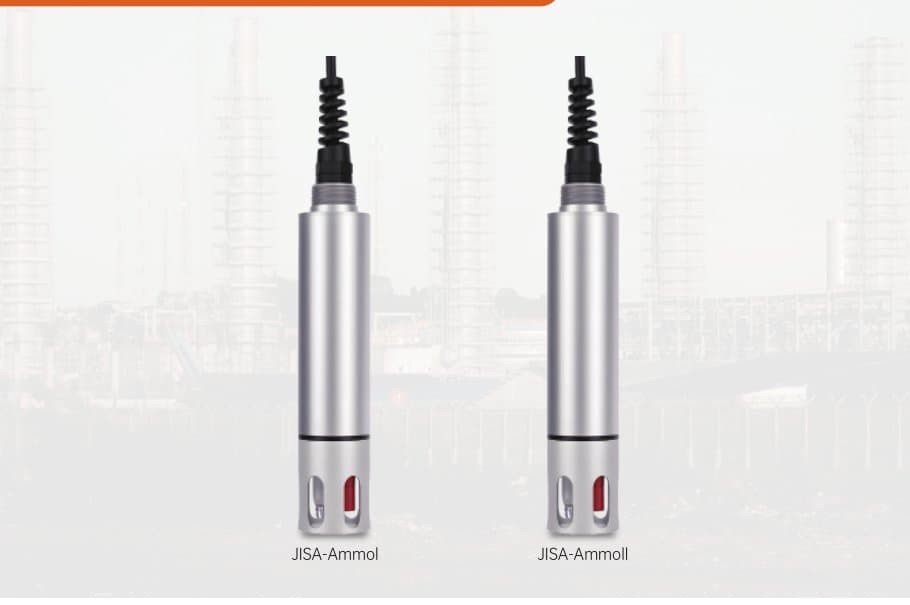

Online Ammonia Nitrogen Analyzer JISA-AmmoII
SKU: WQ-01645
Available
Online Ammonia Nitrogen Analyzer JISA-Ammo Introduction Advantages JISA-Ammo is an online water quality analyzer developed based. Imported online ion selective electrode, can work stably for a on a digital water quality analysis platform. It has an integrated long time design, uses industrial online ion selective electrodes, and uses pH, temperature, potassium ion (K+) and other digital and intelligent sensor design concepts. The instrument multi-parameter compensation algorithms to ensure implements functions such as electrode signal detection, pH compensation, temperature detection and automatic compensameasurement accuracy tion, and digital signal conversion. IP68 waterproof rating.
- Measurement parameters
- Ammonia nitrogen, pH, potassium ion, temperature
- Measurement method
- Ion Selective Electrode Method
- Range
- Ammonia nitrogen: (0.1~1000) mg/L, pH: 0~14
- Potassium ion
- (0.1~1000) mg/L, temperature: (0~60)℃
- Accuracy
- ≤±3%
- Repeatability
- ≤2%
- Resolution
- Ammonia nitrogen: 0.01mg/L, potassium ion: 0.01mg/L, pH: 0.01
- Detection limit
- 0.1mg/L
- Response time
- ≤60s
- Drift
- ≤±3%F.S.
- Calibration cycle
- 3 months
- Temperature range
- (0~60)℃
- Protection level
- IP68
- Communication
- RS485 (ModbusRTU), maximum baud rate 115200bps
- Power supply/Consumption
- (12~24)VDC/ 0.5W
- Material
- Stainless steel, POM
- Weight/Size
- 0.6kg / 205mmxφ45mm
