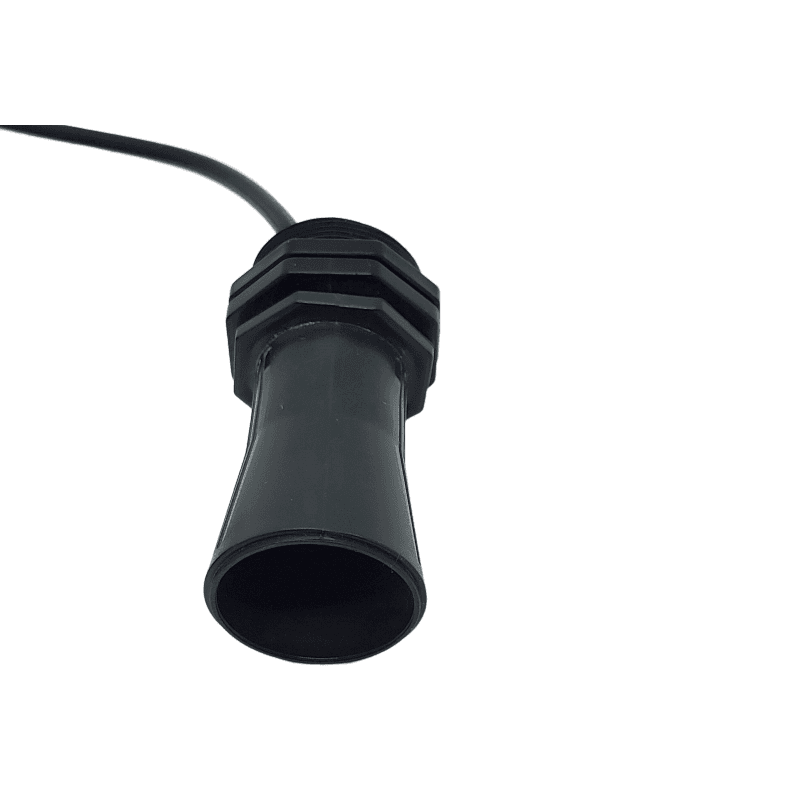

Non Touch RS485 Ultrasonic Level Sensor
SKU: WTH-00295
Available
Non Touch RS485 Ultrasonic Level Sensor (Hydrology). Key specifications: Product Name: Ultrasonic Water level sensor with 3 meters measure range; Measuring principle: ultrasonic sound; Operating temperature range: -20C~+70C; Operating voltage: DC5V; Working current: normal <20mA, sleep <1mA.
- Product Name
- Ultrasonic Water level sensor with 3 meters measure range
- Measuring principle
- ultrasonic sound
- Operating temperature range
- -20C~+70C
- Operating voltage
- DC5V
- Working current
- normal <20mA, sleep <1mA
- Working frequency
- 40kHz
- Max measuring range
- 3m
- Blind area
- 22cm
- Ranging resolution
- 1mm
- Ranging accuracy
- ±(1% reading+10mm)
- Output
- RS485 modbus protocol
- Detection period
- 100ms/work cycle
- Detection angle
- horizontal 1.7deg, vertical 12-29deg
- Storage temperature range
- -20C~70C
- Protection level
- IP65
- Wireless
- 4G RTU/WIFI/LORA/LORAWAN optional
