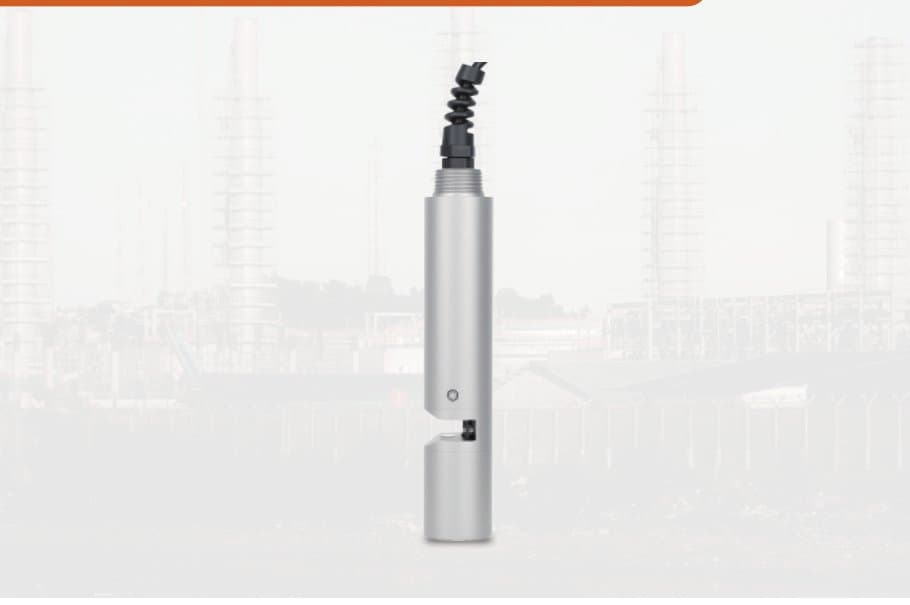

Nitrogen Nitrate Analyzer - Optical Method JD-NITRA UV-VIS
SKU: WQ-01643
Available
Nitrogen Nitrate Analyzer - Optical Method JD-NITRA UV-VIS. Utilizes imported long-life deep ultraviolet LED light source with a lifespan exceeding 10, 000 hours. Dual-wavelength absorption technology enables direct real-time compensation for multiple parameters. Built-in cleaning brush supports scheduled or manual cleaning. Multi-wavelength coaxial optical path design eliminates errors introduced by multi-axis optical paths. Dual measurement channels (measurement and reference) implemented for each wavelength. Low-power design with standby power consumption as low as 0.05W.
- Measurement Parameters
- Nitrate Nitrogen, Turbidity, Temperature
- Measurement Method
- UV/Vis Absorption Method
- Optical Path Range (mm)
- 2 10 50
- Nitrite Nitrogen Range (mg/L)
- 0~300 0~50 0~10
- Turbidity Range (NTU)
- 0~4000 0~1000 0~200
- Temperature Range (°C)
- 0~60°C
- Accuracy
- ≤±5%
- Repeatability
- ≤3%
- Resolution
- Nitrate Nitrogen: 0.01 mg/L
- Response Time
- ≤10S
- Calibration Interval
- 3 months
- Temperature Range
- (0~50)°C
- Protection Rating
- IP68
- MTBF
- ≥1440h/cycle
- Communication Method
- RS485 (Modbus RTU)
- Supply Voltage
- (9~30)V DC
- Power Consumption
- 0.6W (non-cleaning mode)
- Dimensions
- 180mmxφ35mm
