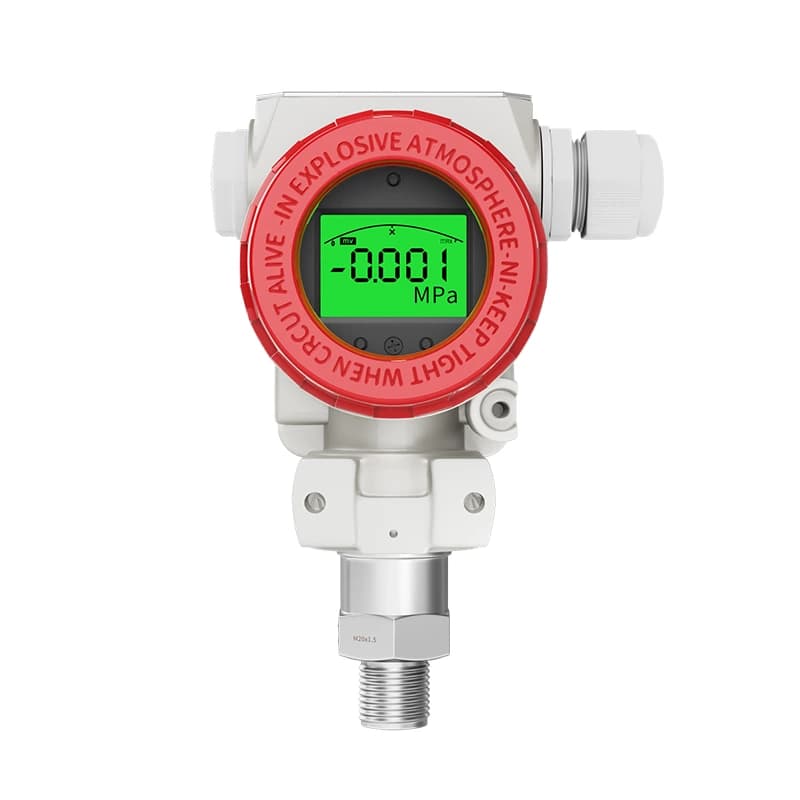

MIK-PX400 Pressure transmitter
SKU: IND-00343
Available
MIK-PX400 Pressure transmitter. Key specifications: Model: MIK-PX400; Measure range: -0.1...0/0.01...60MPa; Pressure type: Gauge pressure, adiabatic pressure, sealed pressure; Accuracy: 0.5%F.S; Output signal: 4~20mA.
- Model
- MIK-PX400
- Measure range
- -0.1...0/0.01...60MPa
- Pressure type
- Gauge pressure, adiabatic pressure, sealed pressure
- Accuracy
- 0.5%F.S
- Output signal
- 4~20mA
- Temperature compensation
- -10~70C
- Working temperature
- -20~85C
- Medium temperature
- -20~85C
- Storage temperature
- -40~85C
- Overload pressure
- 0.035~10MPa(150%FS), 10~60MPa(125%FS)
- Long-term stability
- +/-0.2%FS/year
- Ingress protection
- IP65
- Power supply
- 24VDC(9~36V)
- Resolution
- 0.5%F.S, 0.3%F.S optional
