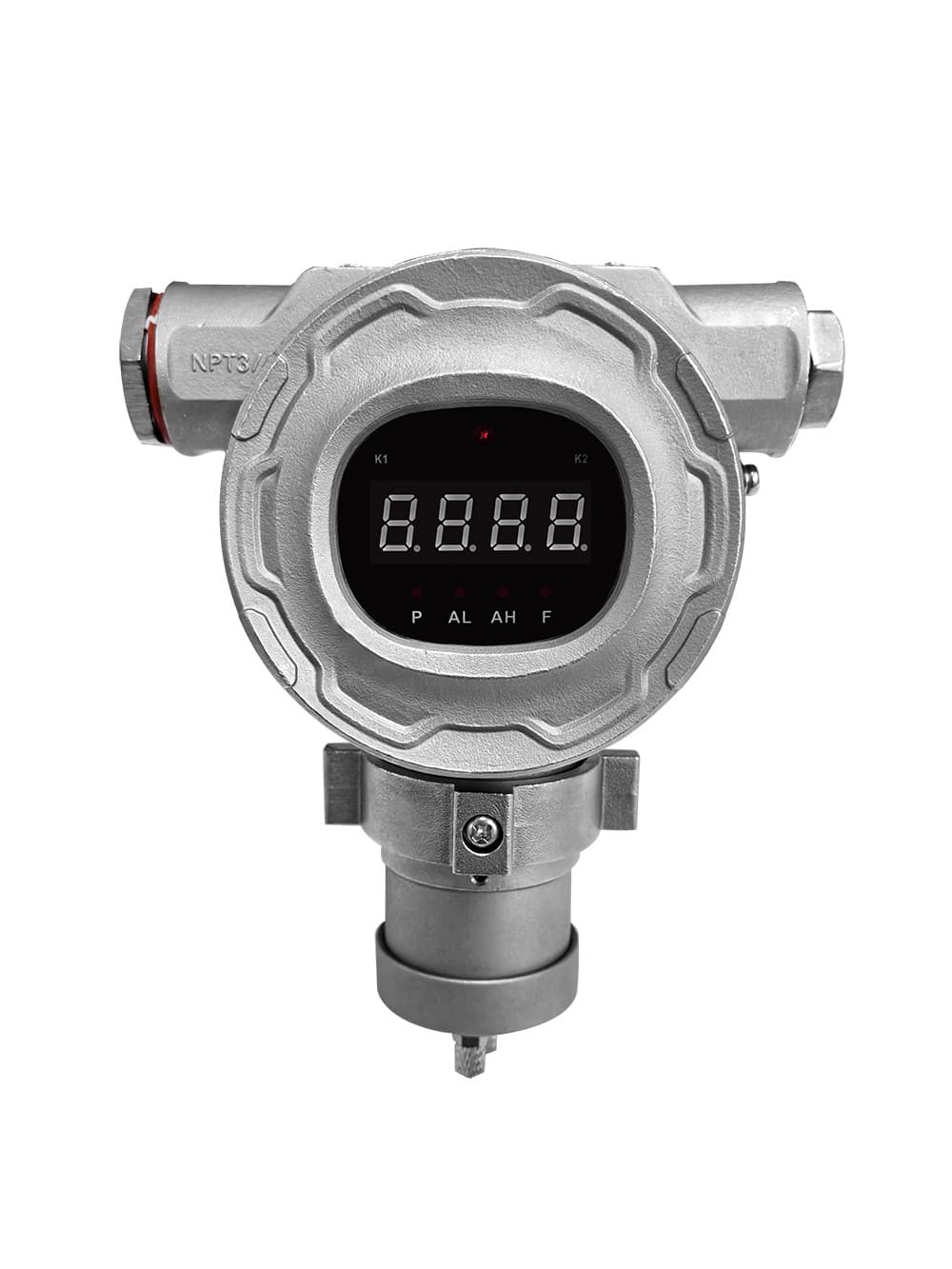

IP66/68 Fixed NOX Gas Detector 316 Stainless Steel
SKU: ENV-00956
Available
Water/dust resistant 316 stainless steel, 4-20mA/RS485 Modbus output, NOX detection.
- Detected Gas
- NOX
- Measure Range
- 0-500PPM
- Output Signal
- 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
- Communication Mode
- 4-20mA, RS485 1~5V, Optional Hart
- Precision
- <=+/-1%F.S. (to be specialized)
- Protection Grade/Degree
- IP66/IP68
- Explosion-Proof
- Ex db IIC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
- Explosion-proof Certification
- IECEX, ATEX, CE, EMC
- Power
- 12-24V DC
- Working Temperature
- -20C~50C
- Humidity
- 10-95%RH (non-condensing)
- Zero Shift
- <=+/-1%(F.S./year)
- Display
- 4 digits Nixie tube display
- Connection Mode
- G3/4 external thread explosion-proof flexible pipe
- Thread Size
- Standard M20*1.5, 3/4NPT
- Material
- Sensor housing: aluminum alloy or 316 stainless steel
- Dimensions
- 158*129*70mm
- Weight
- <=1kg
- Approval
- CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
