Industrial-grade conductivity sensor PSE-513
SKU: WQ-01712
Available

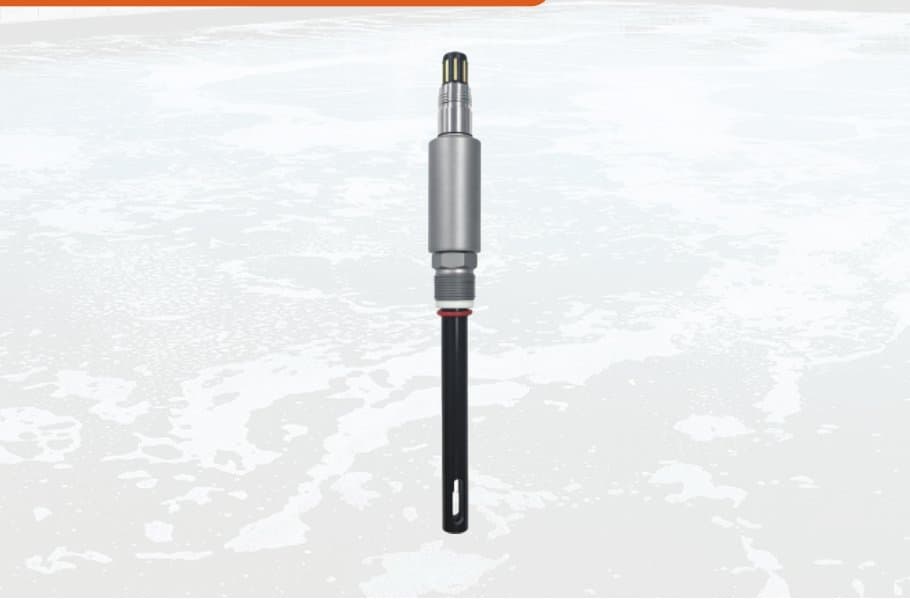

Industrial-grade conductivity sensor PSE-513 The PSE-513 series of online conductivity sensors is designed for applications such as high-temperature wastewater monitoring, pollution source monitoring, and circulating water monitoring. The electrodes utilize a bull's-eye 4-electrode measurement principle, offering a wide measurement range. The electrode body is made of PC material, providing high resistance to corrosive solutions. It maintains excellent accuracy in high-temperature environments, ensuring long-term stable measurements.
- Measurement Range
- 0–500 mS/cm
- Measurement Method
- Four-wire conductivity (bullseye)
- Temperature Range
- (0–80) °C
- Accuracy
- ≤±1%
- Resolution
- 0.01 μS/cm
- Maximum Operating Pressure
- 5 bar
- Electrode Coefficient
- 0.4
- Material
- Electrode shaft: PC
- Electrode
- Graphite
- Temperature Sensor
- NTC
- Interface Type
- M12, VP, Cab
- Power Supply
- 9–26 V
- Communication Method
- RS485 Modbus
- Dimensions
- Electrode section: Φ12 x 120
- Mounting Method
- PG13.5
