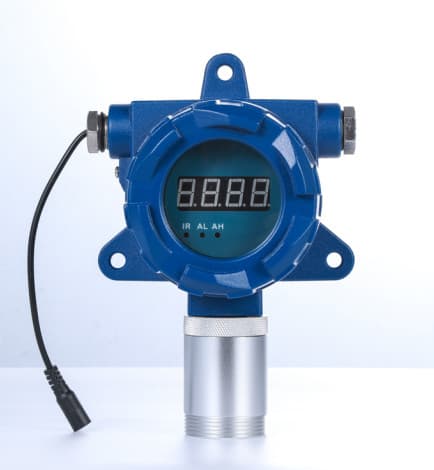

Fixed Gas Detector with 24 Hours Monitoring for R134A Detection
SKU: ENV-00953
Available
Fixed Gas Detector with 24 Hours Monitoring for R134A Detection (Single Gas Detector). Key specifications: Gas detected: r134a; Install method: Wall-mounted, piping type, flow-type (according to detected environment); Measure range: 0-2000ppm; Resolution: 1ppm; Precision: ± 2-5% FS.
- Gas detected
- r134a
- Install method
- Wall-mounted, piping type, flow-type (according to detected environment)
- Measure range
- 0-2000ppm
- Resolution
- 1ppm
- Precision
- ± 2-5% FS
- Signal output
- 4-20mA, 0-5V, RS485, relay (optional)
- Response time
- ≤10S
- Recovery time
- ≤10S
- Repeatability
- ≤±1%
- Linearity error
- ≤±1%
- Zero shift
- ≤±1%(FS/year)
- Display
- High-light nixie tube display
- Connection mode
- G1/2 external thread explosion-proof flexible pipe
- Unit
- ppm, mg/m³, %vol
- Temperature
- -20 to 50°C
- Humidity
- 0-95%RH
- Explosion-proof
- Ex dIICT6
- Degree of protection
- IP65
- Alarm
- Sound, light
- Operating time
- 24H
- Dimensions
- 180*150*90mm
- Weight
- ≤2kg
- Explosion-proof Grade
- Ex D IIC T6 Gb
- Thread Size
- M45*2mm
