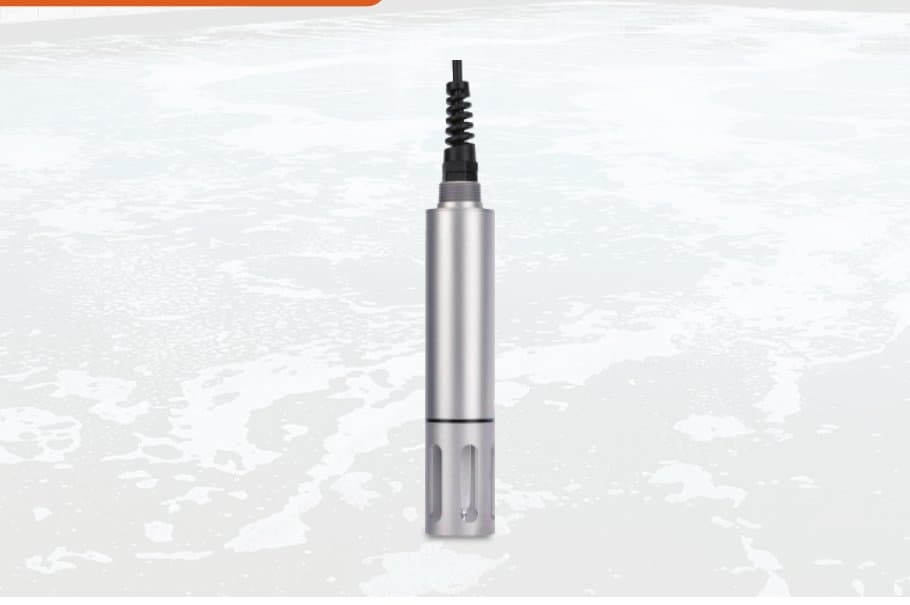

Digital ORP Sensor JECA-ORP
SKU: WQ-01701
Available
Digital ORP Sensor JECA-ORP Introduction Advantages JECA-ORP online ORP analyzer is an integrated design, using industrial. Integrated design, anti-electromagnetic interference online electrodes, digital and intelligent sensor design concepts. Industrial online composite electrode, can work stably for instrument implements electrode signal detection, temperature a long time detection and automatic compensation, digital signal conversion and. Built-in temperature sensor, real-time temperature other functions. RS485 signal output, convenient for networking and compensation system integration. IP68 waterproof rating, suitable for various working conditions.
- Measurement parameters
- ORP, Temperature
- Measurement method
- Glass electrode method
- Range
- ORP: (-2000~+2000)mV
- Temperature
- (0~60)℃
- Accuracy
- ≤±20mV
- Repeatability
- ≤±1mV
- Resolution
- 0.1mV
- Response time
- ≤10s
- Drift
- ≤±1mV
- Temp compensation accuracy
- ≤±1mV
- Calibration cycle
- 6 months
- Temperature range
- (0~60)℃
- Protection level
- IP68
- Communication
- RS485 (ModbusRTU), maximum baud rate 115200bps
- Power supply/Consumption
- (12~24)VDC/ 0.3W
- Material
- Titanium alloy, stainless steel, POM
- Size
- 162mm*φ28mm
