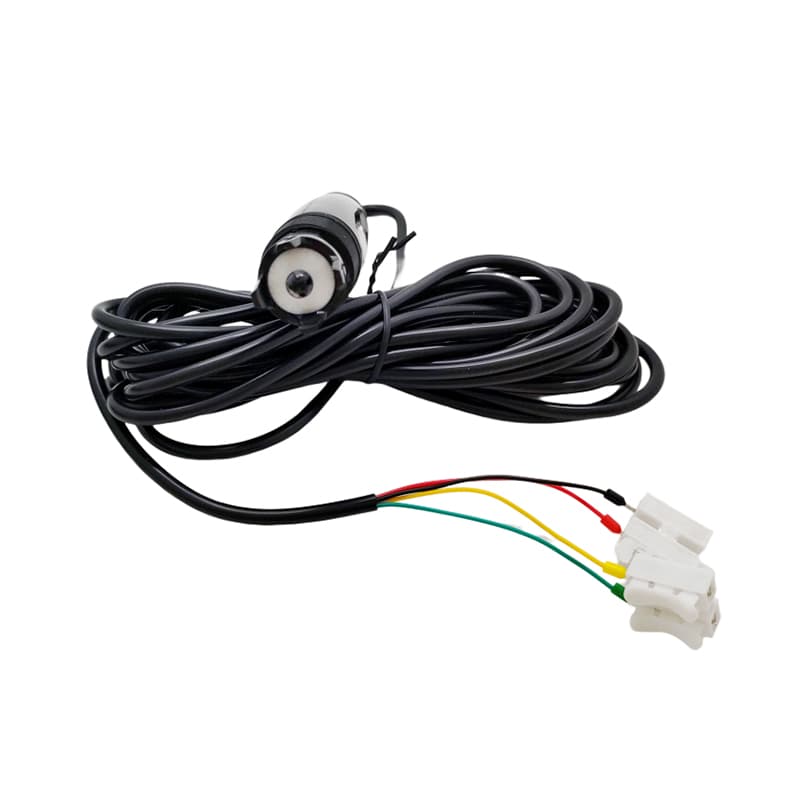

Data Logger Digital RS485 Water PH Sensor
SKU: WQ-00561
Available
Data Logger Digital RS485 Water PH Sensor (Water quality). Key specifications: Parameters name: Water PH Sensor; Measure range: 0~14PH; Resolution: 0.01pH; Accuracy: ±0.02pH; Stability: ≤0.02pH/24 hours.
- Parameters name
- Water PH Sensor
- Measure range
- 0~14PH
- Resolution
- 0.01pH
- Accuracy
- ±0.02pH
- Stability
- ≤0.02pH/24 hours
- Measuring principle
- Principles of Electrochemistry
- Output
- RS485, MODBUS communication protocol
- Housing material
- ABS
- Working environment
- Temperature 0~60℃
- Calibration method
- Three-point calibration PH=4.0, PH=6.86, PH=9.18
- Wide Voltage input
- 3.3~5V/5~24V
- Protection Isolation
- Up to four isolations, power isolation, protection grade 3000V
- Standard cable length
- 2 meters
- Farthest lead length RS485
- 1000 meters
- Protection level
- IP68
- Wireless transmission
- LORA/LORAWAN, GPRS, 4G, WIFI
- Mounting brackets
- 1.5 meters, 2 meters (other heights customizable)
- Measuring tank
- Can be customized
