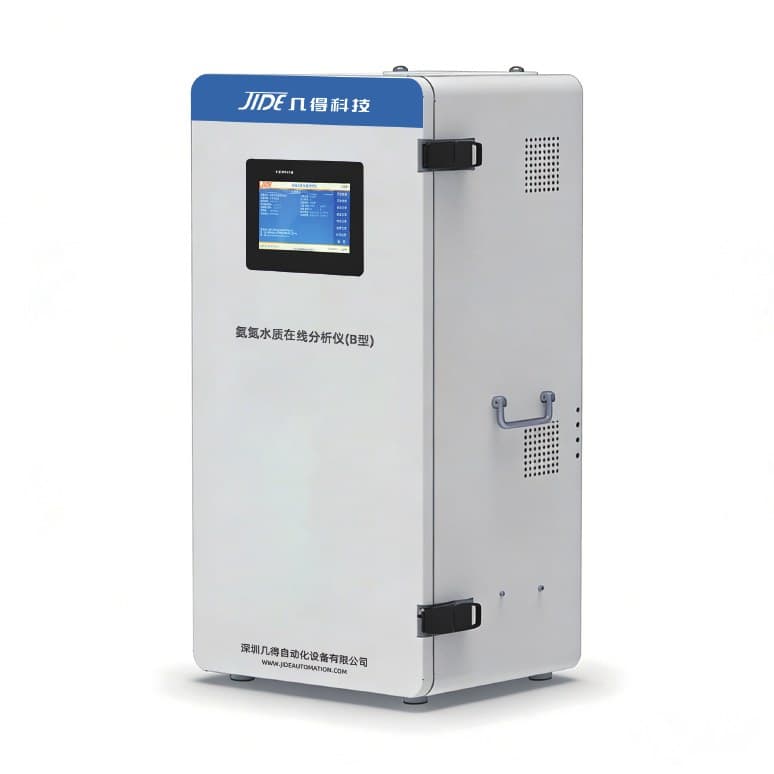

Ammonia Nitrogen Water Quality Online Analyzer (Type B)
SKU: WQ-01637
Available
Online Analyzer (Type B)
Product Overview
The JD1000 Series Online Water Quality Analyzer is an environmental monitoring instrument developed by, featuring proprietary intellectual property rights. Based on the principle of photometric colorimetry and employing a modular design, it can be customized to meet user requirements. Simple to operate, it is widely applicable for water quality monitoring at pollution source discharge points, municipal sewage, industrial wastewater, surface water, and more. 7-inch LCD touchscreen display. Stores over 100, 000 data sets. Features calibration, status, and alarm logging functions.
- Measurement Method
- Nass Reagent, Spectrophotometry
- Measurement Range
- 0-2/20/150 mg/L expandable
- Measurement Cycle
- Configurable
- Lower Limit of Quantification
- ≤0.15 mg/L (indicated value error ±30%)
- Indicated Value Error
- 20% span ±8%
- Repeatability
- ≤2%
- 24h Low Concentration Drift
- ≤0.02 mg/L
- 24h High Concentration Drift
- ≤1%
- Digital Input
- 2 digital outputs
- Analog Output
- 1 x 4–20 mA
- Digital Communication
- RS232 / RS485
- Operating Temperature
- +5°C to 40°C
- Power Supply
- AC 100–240V
- Power Consumption
- 80W
- Dimensions
- 800mm x 400mm x 330mm
- Weight
- 25kg (excluding reagents)
